TSE/TSH series
HS

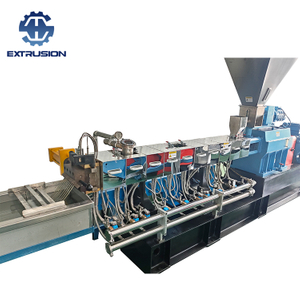

PET Bottle recycling Twin screw extruder
Features
This pelletizer machine is mainly used to make pellets from waste PET bottle.
Processing capacity is from 300kg/h to 700kg/h.
Technical data
| Mode | Diameter | L/D | N(r/min) | Power(kw) | T(N.m) | Q(Kg/h) |
| TSE-40B | 41 mm | 32-52 | 600 | 30 | 239 | 90-150 |
| TSE-65A | 62.4 mm | 32-52 | 500 | 75 | 716 | 180-270 |
| TSE-75D | 71 mm | 32-64 | 600 | 200-150 | 1990 | 500-1000 |
| TSE-95B | 93 mm | 32-64 | 600 | 315 | 2506 | 1500-2250 |
Why choose twin screw extruder?
PET recycled material is scrap form, which increased pressure while feeding. Compared with single screw extruder, twin screw extruder is more suitable and simplefied the process of washing and crushing.
The non-stop screen changer equiped with twin scew extruder machine can effectly filter impurities.
For PP/PE/ABS waste film and other soft plastic recycling, we suggest Haisi HMS series two stage single screw extruder.
The recycled plastic can be used in various field.
Auxiliary machine you may need:
1. belt conveyor
2. Plastic crusher
NANJING HAISI is professional manufacturer of PET bottle recycling line. If there is anything else we can do for you, please always feel free to contact us.
