| Quantity: | |
|---|---|
TSE-75B
HS
our company is a professional manufacturer of granulating extruders for coloring/dyeing , filling masterbatch production , as well as plastic modification and compounding , plastic recycling,innovative machines are built as per the concept of durability , high efficiency and economical power consumption ,and we also have substantial experience in R&D. technique and after sales service . and for some materials. we supply turn-key solution project .
Related pelletizer for various plastic compound
Twin screw extruder for master batch production
| Two stage extruder for PVC compound/high filler
| PET recycled Plastic pelletizing machine
| Lab extruder & Mini extruder
|
PVA+starch biodegradable granules making machine | Underwater pelletizer for EVA compound
| Nylon extrusion & Nylon compounding
| Pet food extruder & extruded dog food
|
This TSE-75B twin screw extruder is Haisi's 2018 lateset design. From the gearbox, screw elements to the assembling of the extruder is all done by ourselves.
Twin screw extruder is widely used for plastic modification, plastic compounding, masterbatch making, as well as hard plastic recycling, such as PET bottles, TPU wastes, ABS shield, etc.

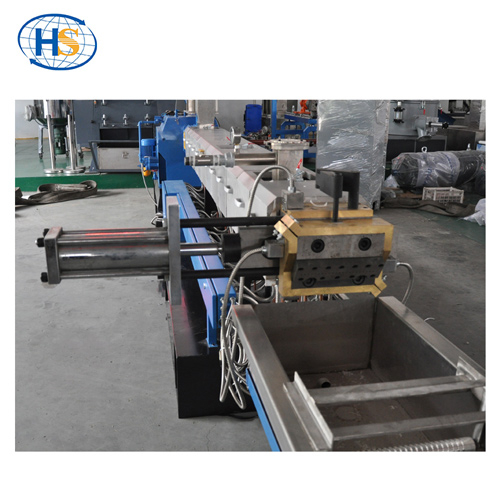

Here is a site photo of machine test running for PET bottle recycling. The pelletizing method is water strand pelletizing.
| Name: Twin screw extruder with water strand pelletizing | |
| Diameter:71mm | L/D:32-64 |
| Motor Power: 200-250kw | Screw rotary: 600-800r/min |
| Torque: 7.6N.m | Color:customized |
| Package:Wooden case or wooden pallet | Voltage:220V,380V,415V |
| Application: | |
| PE.PP.PS+ABS ETC | |
| PP PE EVA+CACO3,TALC,TITANIC | |
| Color masterbatch:PP PE+pigment | |
| PP PA+GF | |
This four pelletizing methods are the most popular way in plastic granulation.
Also, we supply two stage extruder, single screw extruder, plastic mixer, plastic crusher and other auxiliary machines in plastic extrusion line.
Other Model Machine:
| Model | Diameter (mm) | L/D | Rotary (r/min) | Power (kw) | Torque (N.m) | T/N3 | Capacity (kg/h) |
| TSE-20 | 22 | 32-44 | 600 | 5.5 | 43 | 7.5 | 0.5-10 |
| TSE-30 | 31 | 32-48 | 600 | 15 | 119 | 6.7 | 5-40 |
| TSE-40 | 41 | 32-52 | 600 | 30 | 239 | 5.8 | 90-150 |
| TSE-50 | 50.5 | 32-52 | 500 | 55 | 430 | 5.4 | 135-270 |
| TSE-65 | 62.4 | 32-64 | 600 | 90 | 716 | 5.1 | 200-300 |
| TSE-75 | 71 | 32-64 | 600 | 132 | 1050 | 4.8 | 350-550 |
| TSH-75 | 71 | 32-64 | 600 | 200-250 | 1365 | 7.6 | 600-9000 |
| TSE-95 | 93 | 32-64 | 600 | 315 | 2506 | 5.3 | 800-1200 |
