| Quantity: | |
|---|---|
TSE-40B
HS
Product Description
1. Plastic pellet machine extruder Parameter
| Mode | Diameter | L/D | Screw rotary | Main moter | Torque | Torque level | Output |
| TSE-75A | 71 mm | 32-56 | 400-500 r/min | 90/110 kw | 1074/1050 N.m | 4.9/4.8 T/ N³ | 250-420 kg/h |
| TSE-75B/C | 71 mm | 32-64 | 600 r/min | 132/160 kw | 1050/1273 N.m | 4.8/5.8 T/N³ | 350-600 kg/h |
| TSE-75D | 71 mm | 32-64 | 600 r/min | 200-250 kw | 1990 N.m | 9.2 T/N³ | 500-1000 kg/h |
2. Representative Materials Working Capability Schedule Of
TSE 75 Series Co-rotating twin screw extruder (Reference Values)
| Process | Representative materials |
| Mixing nature-changing | PE/ PP/ PS+SBS; PA+EPDM; PP+NBR; EVA +Silicon rubber, etc. |
| PE/ PA/ PC/ CPE+ABS(alloy); PBT+PET; PP+ PE, etc. | |
| Filling nature-changing | PE/ PP/ EVA, ect. + Calcium carbonate/ talcum powder/ titanic powder; ABS/PC/PS, etc. +aluminum hydroxide/ magnesium hydroxide/ antimony oxide. |
| PP/ PA/ ABS+ ferrous powder/ sulphuric powder/ ceramic powder | |
| Functional machine pellets | PP/ PA/ ABS/ PBT, etc+ anti-burning agent and other auxiliary agents: combustion-supporting machine pellets |
| PE/ PP/ PS, etc+ starch: de-composing machine pellets | |
| PE+ fog-preventing dipper, stabilizer: dual-prevention machine pellets | |
| PE/ EVA/ ABS, etc.+ carbon black; black machine pellets | |
| Colored machine pellets | PE/ PP/ ABS/ AS/ PA/ EVA/ PET +pigment and auxiliary |
| Intensified glass fibres and carbon fibres | PP/ PBT/ ABS/ AS/ PA/ PC/ POM/ PPS/ PET, etc. + long fires/ small fibres/ carbon fibres/ crystals and so on, etc. |
| Various cables | HDPE/ LDPE/ LLDPE/ MDPE/ EVA/ PVC/ PP, etc. insulating cables/ coatings; PE peroxide silicon alkyl crossing cables; radialization crossing cables. |
| Special materials | EVA heat-melting glue, polyurethane, fluorin rubber, fluorine plastics , PP cigarette filtering material and TPR sole material |
| Reaction extruding | Polyamide condensate, polyamide melting polymerization, polyamide polyethene-adding, polycarbonate condensate, etc. |
| Exhausting and volatilization | Polystyrene oxide, high-absorbing resin, chlorine sulphur piolyethylene |
| Powder paint | Polyester, ring oxide, lactide, polyurethane, acrylate |

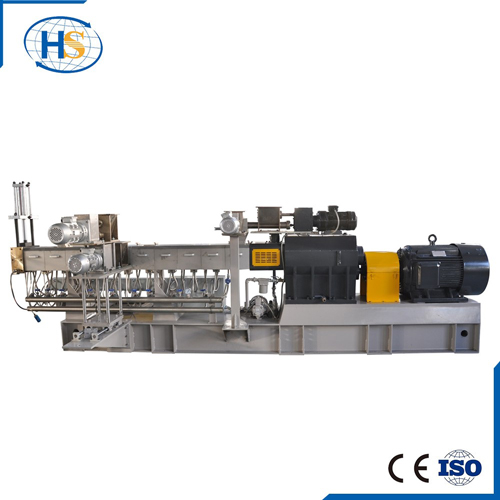

3. TSE Series Twin Screw Plastic Extruder Machine Product Display :
4. Characteristics and spare parts of the extrusion machine
Work Line
Packaging & Shipping
Our twin screw extruder machine is fisrt painted with anticorrosive oil, and then wrapped in the plastic film before it is finally packed in the wooden case.
Service
Nanjing Haisi Extrusion Equipment Co., Ltd. has a professional sales team, personal contact with customers, regular reminders and solve installation, maintenance, repair and other problems encountered by customers in the mechanical operation of the equipment failure analysis and quick to do the maintenance program, in any country and region can get our professional and technical personnel of the most timely and quality service.
Before-sale
• Introduce products in detail • Recommend suitable solution • Offer test
During manufacturing
• Provide layout and engineering conditions • Offer screw plan and related documents
• Inform the project processing status • Insure the product designed in accordance with technical document
After-sale
• Provide installation, commissioning and training • Offer spare parts
• Provide necessary technical support and update information.
Company Information
Nanjing HaiSi Extrusion Equipment Co., Ltd is a High-Tech company, which is composed of well-experienced team in R&D, manufacturing technique, sales service and basing on extruder industry for many years. Our company is a professional manufacture of high quality pelletizing extruders for coloring/ dyeing and master batch production, as well as plastic modification and compounding, plastic recycling. Innovation machines are built as per the concept of durability, high efficiency and economical power consumption.
NANJING HAISI is professional manufacturer of double screw pelletizing machine for mixing and pigments, we supply compounding twin screw extrusion production line, Twin Screw Extruder, Single Screw Extruder, Plastic Recycling Extruder, Two Stage Extruder, Lab Scale Machinery, Mixing and Feeding Machine, Cooling and Pelletizing Machine, Crushing Machine and so on.
FAQ
1. Q: How about Haisi?
R: Nanjing Haisi Extrusion Equipment Co., Ltd. is a High-Tech company. Our firm is composed of a strong team which has substantial experience in R&D, manufacture, technique and service, and has specialized in extruder industry for ten years, leading screw barrel manufacturer in China.
2. Q: What is the MOQ?
R: We are the manufacturer of extruder machine. Also we provide the whole set of plastic pellet production line solution. So you can also buy spare parts and auxiliaries of the extruder in our company.
3. Q: What's the delivery time?
R: Usually the processing period is around 50 days. Before you place the order or before we send it out, we warmly welcom you come to visit and check the extruder!
4. Q: Where is Haisi factory and how to reach there?
R: At Lishui, Nanjing, Jiangsu Province. If you want to visit us, we can pick you up in the airpor or train station.
5. Q: How to contact with us?
R: Plz send an inquiry to me directly if you have any question.
Email: vera@hsextruder.com
Product Description
1. Plastic pellet machine extruder Parameter
| Mode | Diameter | L/D | Screw rotary | Main moter | Torque | Torque level | Output |
| TSE-75A | 71 mm | 32-56 | 400-500 r/min | 90/110 kw | 1074/1050 N.m | 4.9/4.8 T/ N³ | 250-420 kg/h |
| TSE-75B/C | 71 mm | 32-64 | 600 r/min | 132/160 kw | 1050/1273 N.m | 4.8/5.8 T/N³ | 350-600 kg/h |
| TSE-75D | 71 mm | 32-64 | 600 r/min | 200-250 kw | 1990 N.m | 9.2 T/N³ | 500-1000 kg/h |
2. Representative Materials Working Capability Schedule Of
TSE 75 Series Co-rotating twin screw extruder (Reference Values)
| Process | Representative materials |
| Mixing nature-changing | PE/ PP/ PS+SBS; PA+EPDM; PP+NBR; EVA +Silicon rubber, etc. |
| PE/ PA/ PC/ CPE+ABS(alloy); PBT+PET; PP+ PE, etc. | |
| Filling nature-changing | PE/ PP/ EVA, ect. + Calcium carbonate/ talcum powder/ titanic powder; ABS/PC/PS, etc. +aluminum hydroxide/ magnesium hydroxide/ antimony oxide. |
| PP/ PA/ ABS+ ferrous powder/ sulphuric powder/ ceramic powder | |
| Functional machine pellets | PP/ PA/ ABS/ PBT, etc+ anti-burning agent and other auxiliary agents: combustion-supporting machine pellets |
| PE/ PP/ PS, etc+ starch: de-composing machine pellets | |
| PE+ fog-preventing dipper, stabilizer: dual-prevention machine pellets | |
| PE/ EVA/ ABS, etc.+ carbon black; black machine pellets | |
| Colored machine pellets | PE/ PP/ ABS/ AS/ PA/ EVA/ PET +pigment and auxiliary |
| Intensified glass fibres and carbon fibres | PP/ PBT/ ABS/ AS/ PA/ PC/ POM/ PPS/ PET, etc. + long fires/ small fibres/ carbon fibres/ crystals and so on, etc. |
| Various cables | HDPE/ LDPE/ LLDPE/ MDPE/ EVA/ PVC/ PP, etc. insulating cables/ coatings; PE peroxide silicon alkyl crossing cables; radialization crossing cables. |
| Special materials | EVA heat-melting glue, polyurethane, fluorin rubber, fluorine plastics , PP cigarette filtering material and TPR sole material |
| Reaction extruding | Polyamide condensate, polyamide melting polymerization, polyamide polyethene-adding, polycarbonate condensate, etc. |
| Exhausting and volatilization | Polystyrene oxide, high-absorbing resin, chlorine sulphur piolyethylene |
| Powder paint | Polyester, ring oxide, lactide, polyurethane, acrylate |
3. TSE Series Twin Screw Plastic Extruder Machine Product Display :
4. Characteristics and spare parts of the extrusion machine
Work Line
Packaging & Shipping
Our twin screw extruder machine is fisrt painted with anticorrosive oil, and then wrapped in the plastic film before it is finally packed in the wooden case.
Service
Nanjing Haisi Extrusion Equipment Co., Ltd. has a professional sales team, personal contact with customers, regular reminders and solve installation, maintenance, repair and other problems encountered by customers in the mechanical operation of the equipment failure analysis and quick to do the maintenance program, in any country and region can get our professional and technical personnel of the most timely and quality service.
Before-sale
• Introduce products in detail • Recommend suitable solution • Offer test
During manufacturing
• Provide layout and engineering conditions • Offer screw plan and related documents
• Inform the project processing status • Insure the product designed in accordance with technical document
After-sale
• Provide installation, commissioning and training • Offer spare parts
• Provide necessary technical support and update information.
Company Information
Nanjing HaiSi Extrusion Equipment Co., Ltd is a High-Tech company, which is composed of well-experienced team in R&D, manufacturing technique, sales service and basing on extruder industry for many years. Our company is a professional manufacture of high quality pelletizing extruders for coloring/ dyeing and master batch production, as well as plastic modification and compounding, plastic recycling. Innovation machines are built as per the concept of durability, high efficiency and economical power consumption.
NANJING HAISI is professional manufacturer of double screw pelletizing machine for mixing and pigments, we supply compounding twin screw extrusion production line, Twin Screw Extruder, Single Screw Extruder, Plastic Recycling Extruder, Two Stage Extruder, Lab Scale Machinery, Mixing and Feeding Machine, Cooling and Pelletizing Machine, Crushing Machine and so on.
FAQ
1. Q: How about Haisi?
R: Nanjing Haisi Extrusion Equipment Co., Ltd. is a High-Tech company. Our firm is composed of a strong team which has substantial experience in R&D, manufacture, technique and service, and has specialized in extruder industry for ten years, leading screw barrel manufacturer in China.
2. Q: What is the MOQ?
R: We are the manufacturer of extruder machine. Also we provide the whole set of plastic pellet production line solution. So you can also buy spare parts and auxiliaries of the extruder in our company.
3. Q: What's the delivery time?
R: Usually the processing period is around 50 days. Before you place the order or before we send it out, we warmly welcom you come to visit and check the extruder!
4. Q: Where is Haisi factory and how to reach there?
R: At Lishui, Nanjing, Jiangsu Province. If you want to visit us, we can pick you up in the airpor or train station.
5. Q: How to contact with us?
R: Plz send an inquiry to me directly if you have any question.
Email: vera@hsextruder.com
