| Quantity: | |
|---|---|
TSH-75B
HS

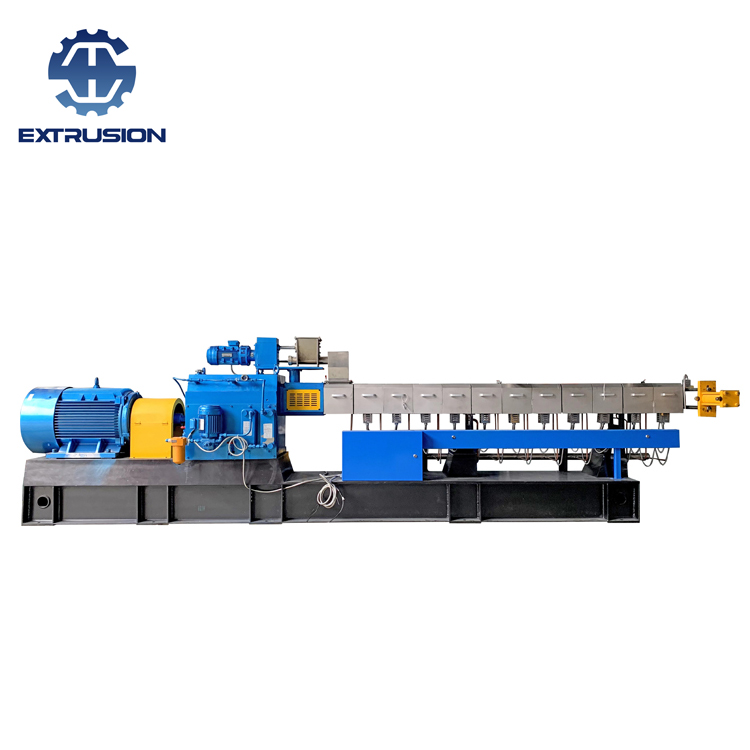

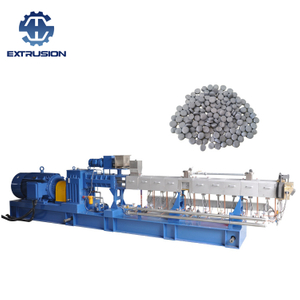

| Name: Twin screw plastic pelletizer machine | |
| Diameter:71mm | L/D:32-64 |
| Motor Power: 200-250kw | Screw rotary: 600-800r/min |
| Torque: 7.6N.m | Color:customized |
| Package:Wooden case or wooden pallet | Voltage:220V,380V,415V |
| Application: | |
| PE.PP.PS+ABS ETC | |
| PP PE EVA+CACO3,TALC,TITANIC | |
| Color masterbatch:PP PE+pigment | |
| PP PA+GF | |
Other Model Machine:
| Model | Diameter (mm) | L/D | Rotary (r/min) | Power (kw) | Torque (N.m) | T/N3 | Capacity (kg/h) |
| TSE-20 | 22 | 32-44 | 600 | 5.5 | 43 | 7.5 | 0.5-10 |
| TSE-30 | 31 | 32-48 | 600 | 15 | 119 | 6.7 | 5-40 |
| TSE-40 | 41 | 32-52 | 600 | 30 | 239 | 5.8 | 90-150 |
| TSE-50 | 50.5 | 32-52 | 500 | 55 | 430 | 5.4 | 135-270 |
| TSE-65 | 62.4 | 32-64 | 600 | 90 | 716 | 5.1 | 200-300 |
| TSE-75 | 71 | 32-64 | 600 | 132 | 1050 | 4.8 | 350-550 |
| TSH-75 | 71 | 32-64 | 600 | 200-250 | 1365 | 7.6 | 600-9000 |
| TSE-95 | 93 | 32-64 | 600 | 315 | 2506 | 5.3 | 800-1200 |
NANJING HAISI is professional manufacturer of 35mm twin screw compouning extruder, we supply Twin Screw Extruder, Single Screw Extruder, Plastic Recycling Extruder, Two Stage Extruder, Lab Scale Extruder, Mixing and Feeding Machine, Cooling and Pelletizing Machine, Crushing Machine and so on.
