Advantage of Water Strand Pelletizing line
It is suitable for most polymer compounding production, which features simple structure, easy operation and convenient maintenance. The threshold of operators is also low. This system consists of strand die, water batch, air knife, strand pelletizer and vibrating classifier.
1. high speed mixer 2. loader 3. main feeder 4. side feeder 5. long glass fiber 6. twin screw extruder 7. water bath 8. air knife 9. strand pelletizer 10. silo
Water strand pelletizing line for Filling/Compounding and Reinforcing
Fibre reiforcement : glass fibre, carbon fibre reinforced PP, PA, PBT, ABS, PC, POM, PPS, PET, etc.
Fibre reiforcement : glass fibre, carbon fibre reinforced PP, PA, PBT, ABS, PC, POM, PPS, PET, etc.
Incorporation of Fillers: Caco3, Talc, TiO2, carbon black,filled PE, PP, or EVA, etc.
Cable Compounds: cable sheath, cable insulation compounds of LDPE, HDPE, LLDPE, MDPE; radiation-crosslinkable
compounds, optical fibre protection compounds, heat-shrinkable polymer compounds.
Special Compounds: PPR pipe compounds, PE compounds for crosslinked pipes, tobacco filter compounds, etc.
High Concentration Color Masterbatches: PE, ABS, PS, EVA, PP,etc. with high concentration of pigments and other
processing aids.
Masterbatches with Flame-retardants: PE, ABS, PS, EVA, PET, PP, etc. with flame retardants and other additives.
The water strand extruder also fit for PET bottles/ flakes recycling.

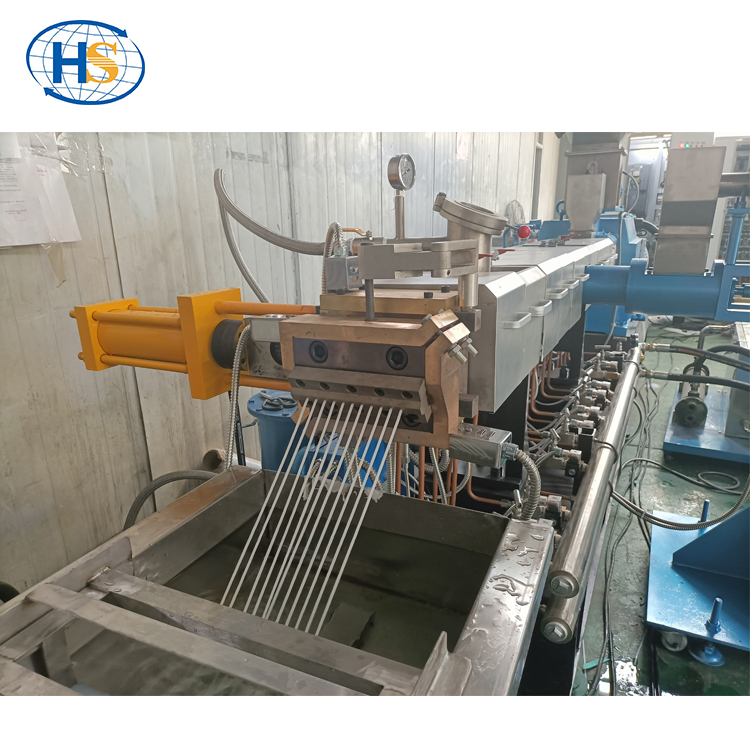

Water strand pelletizing line test running:
Water strand pelletizing line can equipped with almost all models:
Mode | Diameter D(mm) | Length (mm) | L/D | Screw Rater N(r/min) | Motor Power | Torque T(N.m) | Capacity Q(kg/h) |
TSE-30B | 31 | 120 | 32-48 | 600 | 15 | 119 | 5-40 |
TSE-40B | 41 | 160 | 32-52 | 600 | 30 | 239 | 90-150 |
TSE-52B | 51.5 | 210 | 32-64 | 600 | 55 | 438 | 225-250 |
TSE-65B | 62.4 | 240 | 32-64 | 600 | 90 | 716 | 200-300 |
TSE-75B | 71 | 290 | 32-64 | 600 | 132 | 1050 | 350-550 |
TSE-75D | 71 | 290 | 32-64 | 600 | 220-250 | 1990 | 500-1000 |
TSE-95B | 93 | 360 | 32-64 | 600 | 315 | 2506 | 800-1200 |
Auxiliary machines you may need in water strand pelletizing line:
High speed mixer
Screw loader
Strand pelletizer
Diehead
Other pelletizing line you may be insterested: underwater pelletizing line, air-cooling pelletizing line, and water ring pelletizing line.
