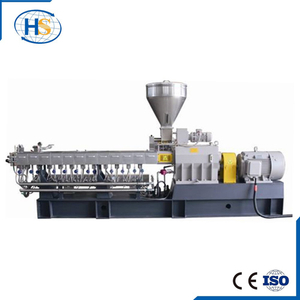

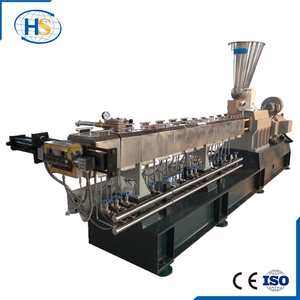

TSE-50B Twin Screw Extruder for PA/PE/PP+GF with Side Feeder

Share to:

TSE-50B Twin Screw Extruder for PA/PE/PP+GF with Side Feeder

PP/PE/PA + Glass fiber plastic reinforcement extruder with side feeder.
TSE-50 Model twin screw extruder with 200kg/h.
Water cooling strand pelletizing line

Availability:

Quantity:



Inquire Add to Basket

Model:
TSE-50B
Brand:
HS

Product Description

内页_01

详情图 (1)

The screw elements and kneading blocks are designed by preciseprocessed, agile combination, with interchangeability, which can fufil efficient sel-cleaning, transmission, compoudning, presure-forming, etc. The screw is made of high tool steel 38 CrMoALA or W6Mo5C4V3 by special heat-treatment, which is prossessed with high corrosion-resistant and high functions.

详情图 (3)

Engineer plastic generally means SAN, ABS, PET, PBT, POM, PMMA, PA6, PA66, PC and all reinforced and modified polymers used in injection and extrusion applications.

Applications：automotive, electrical, blow moulding, film and pipe extrusion, fiber, etc.

Processing methods: short fiber reinforce compounding and long-fiber thermoplastic (LFT).

内页_05

详情图 (2)

Name: Twin screw plastic extruder for PP/PE/PA+Glass Fiber
Diameter: 50mm	Customer: Thailand
Capacity:150-200kg/h	Features: Side feeder
Pelletizing method: Water cooling strand pelletizing line

Other Model Machine:

Model	Diameter (mm)	L/D	Rotary (r/min)	Power (kw)	Torque (N.m)	T/N3	Capacity (kg/h)
TSE-40	41	32-52	600	30	239	5.8	90-150
TSE-50	50.5	32-52	500	55	430	5.4	135-270
TSE-65	62.4	32-64	600	90	716	5.1	200-300
TSE-75	71	32-64	600	132	1050	4.8	350-550
TSE-95	93	32-64	600	315	2506	5.3	800-1200
