TSH Series
HS
Product Description
Functions:
Plastics filling and modification, general and fibre color masterbatch, blending modification (rubber and plastic blending, plastic alloy), functional masterbatch, glass fibre or carbon fibre reinforcement, various cable material, reactive extrusion, handling after venting and dewatering, special material, powder coating
1,Mixing nature-changing: PE, PP, PS+SBS; PP+NBR; PA+EPDM;EVA+Sillicon rubber, etc.
PE, PA, PC, CPE+ABS(Alloy); ABS+TPU; PBT+PET; PP+PE,etc.
2,Filling nature-changing: PE, PP, EVA, etc.+Calcium Carbonate, talcum powder, titanic powder; ABS, PC, PS, etc.+aluminum hudroxide, magnesium hydroxide, antimony oxide.
3,Functional machine pellets: PP, PA, PS etc.+ starch :de-composing machine pellets;
PE+fog-preventing dipper, stabilizer: dual-prevention machine pellets;
PE, EVA, ABS etc. +carbon black: black machine pellets.
4,Colored machine pellets: PE, PP, ABS, AS, PA, EVA, PET +pigment and auxiliary.
5,Intensified glass fibres and carbon fibres: PP, PBT, ABS, AS, PA, PC, POM, PPS, PET, etc.+long fires, carbon fibres, crystals and so on etc.
Characteristics:
1, Modular principle design for screw configuration and barrel setup makes combination and cleaning convenient , also easy to adapt to customers' requirements .
2, Different kinds of pelletizing modes can meet specific material properties: water-cooling strand pelletizing, air-cooling hot-cut pelletizing, water-ring pelletizing, under water pelletizing, etc.
3, Screw elements and kneading blocks are made of high tool steel , with high corrosion-resistant and high wear-resistant.
4, Barrels are made of high quality nitrided steel , corrosion proof and antifriction.
5, Vacuum system fulfills devolatilization to ensure the quality of polymer processing.
Gearbox: ( different types for your choice)
Haisi supplies different models of twin screw extruders, as below:
Machine range:
| Model | Diameter (mm) | L/D | Screw rotating speed (r/min) | Main motor power (kw) | Screw torque (N.m) | Torque level(T/N³) | Output (kg/h) |
| TSE-30B | 30 | 32-48 | 600 | 11 | 85 | 4.7 | 5–40 |
TSE-40B | 41 | 32-52 | 600 | 30 | 225 | 5.5 | 90–150 |
| TSE-52B | 51.5 | 32-64 | 600 | 55 | 405 | 5.1 | 270–450 |
| TSE-65B | 62.4 | 32-64 | 600 | 90 | 675 | 4.8 | 225–375 |
| 600 | 110 | 620 | 4.4 | 330–550 | |||
| 500 | 110 | 1005 | 4.6 | 330–550 | |||
| TSE-75B | 71 | 32-64 | 600 | 132 | 990 | 4.6 | 396–660 |
| 600 | 160 | 990 | 4.6 | 450–750 | |||
| TSE-75D | 71 | 32-64 | 600 | 250 | 900 | 4.2 | 500 – 1000 |
| TSE-95B | 93 | 32-64 | 600 | 315 | 2365 | 5 | 945–1575 |

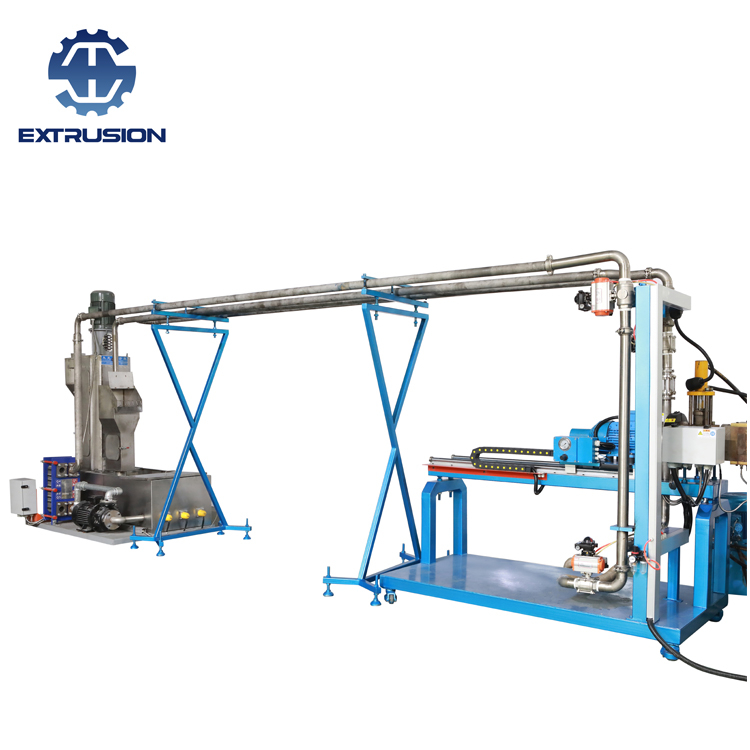

NANJING HAISI is professional manufacturer of underwater pelletizer system, we supply Twin Screw Extruder, Single Screw Extruder, Plastic Recycling Extruder, Two Stage Extruder, Lab Scale Machinery, Mixing and Feeding Machine, Cooling and Pelletizing Machine, Crushing Machine，TPR making facility and so on.
