TSE-75B
HS

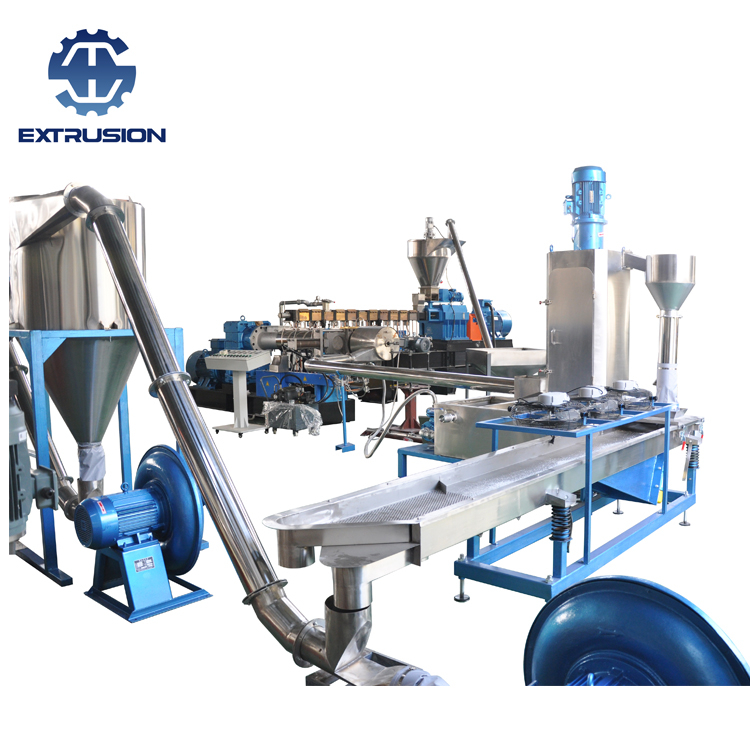

The two stage extruder ：The first stage twin extruder usually runs at the high speed for better compounding and higher throughput. The second stage must be a single screw extruder, with a large diameter and low speed operation. The low screw speed avoids over-shearing force, Due to the strong heat exchange ability ,the internal cooling system can effectively prevent overheating . The two stage extruder allows the operator to perform more flexible , predictable mixing processes and temperature control.
The two stage extruder is mainly used for the compounding of thermoplastic and shearing . double-stage structure are suitable for processing a variety of materials, such as: PVC, XLPE cable material, soft PVC medical material, hard PVC, EVA foam sole material, PE low smoke no Halogen resistance fuel, etc.
Related extruders for various polymer compound
Twin screw extruder for master batch production
| Two stage extruder for PVC compound/high filler
| PET recycled Plastic pelletizing machine
| Lab extruder & Mini extruder
|
PVA+starch biodegradable granules making machine | Underwater pelletizer for EVA compound
| Nylon extrusion & Nylon compounding
| Pet food extruder & extruded dog food
|
This TSE-75B twin screw extruder is Haisi's 2018 lateset design. From the gearbox, screw elements to the assembling of the extruder is all done by ourselves.
Twin screw extruder is widely used for plastic modification, plastic compounding, masterbatch making, as well as hard plastic recycling, such as PET bottles, TPU wastes, ABS shield, etc.
Here is a site photo of machine test running for PET bottle recycling. The pelletizing method is water strand pelletizing.
| Name: Twin screw extruder with water strand pelletizing | |
| Diameter:71mm | L/D:32-64 |
| Motor Power: 200-250kw | Screw rotary: 600-800r/min |
| Torque: 7.6N.m | Color:customized |
| Package:Wooden case or wooden pallet | Voltage:220V,380V,415V |
| Application: | |
| PE.PP.PS+ABS ETC | |
| PP PE EVA+CACO3,TALC,TITANIC | |
| Color masterbatch:PP PE+pigment | |
| PP PA+GF | |
This four pelletizing methods are the most popular way in plastic granulation.
Other Model Machine:
| Model | Diameter (mm) | L/D | Rotary (r/min) | Power (kw) | Torque (N.m) | T/N3 | Capacity (kg/h) |
| TSE-20 | 22 | 32-44 | 600 | 5.5 | 43 | 7.5 | 0.5-10 |
| TSE-30 | 31 | 32-48 | 600 | 15 | 119 | 6.7 | 5-40 |
| TSE-40 | 41 | 32-52 | 600 | 30 | 239 | 5.8 | 90-150 |
| TSE-50 | 50.5 | 32-52 | 500 | 55 | 430 | 5.4 | 135-270 |
| TSE-65 | 62.4 | 32-64 | 600 | 90 | 716 | 5.1 | 200-300 |
| TSE-75 | 71 | 32-64 | 600 | 132 | 1050 | 4.8 | 350-550 |
| TSH-75 | 71 | 32-64 | 600 | 200-250 | 1365 | 7.6 | 600-9000 |
| TSE-95 | 93 | 32-64 | 600 | 315 | 2506 | 5.3 | 800-1200 |
